Andrews Class 40
Box rule racer

Offshore box rule for short handed racing.  Top offshore performance in this design with chined hull, twin retractable rudders, water ballast.  Class rules mandate economical materials but leave hull shape, appendages and sail area distribution open for innovation.

Return to New Design Page

Click on thumbnails to view larger image. Use browser back button to return here.

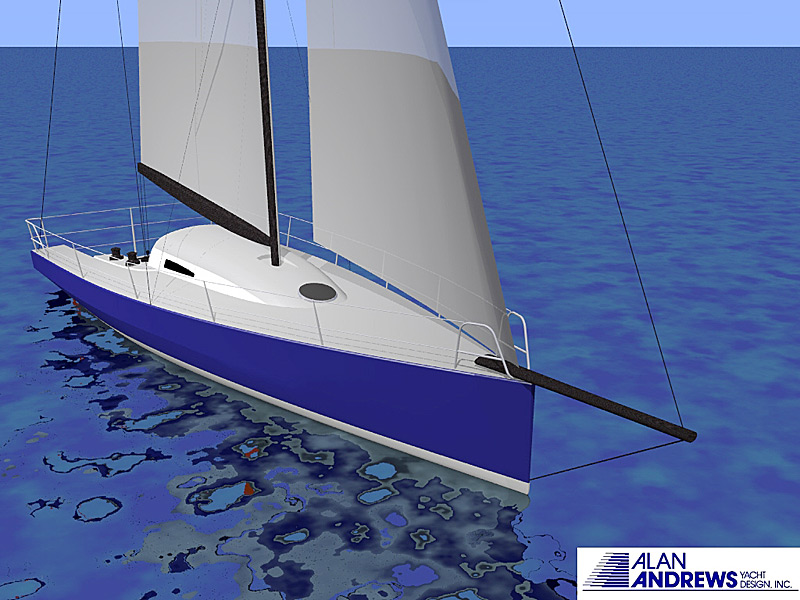

Class 40
Forward starboard view
(Click to enlarge)

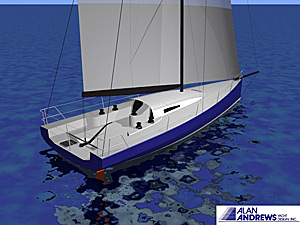

Class 40
Aft starboard view
(Click to enlarge)

  ANDREWS Class 40
                    Preliminary  Dimensions

LOA       40.00 ft.  12.19 m
LWL       39.00 ft.  11.88 m
Beam      14.00 ft.    4.27 m

             Draft

   9.80 ft.
    3.00 m

    Displacement

  9920 lbs 4500 kg
Mainsail area    742 ft2  69.0 m2
Headsail area   495 ft2 46.0 m2
 Water ballast - per side  198 gal   750 litres
Engine  Yanmar 3YM30

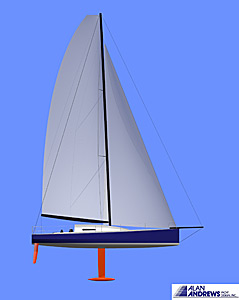

Sail plan
Sail Plan
 (Click to enlarge)
