Pegasus 55
High Performance Racer/Cruiser



Pegasus  55 Sailing Photos

Interior Photos and Renderings

Philippe Kahn, internationally known competitor in boats ranging from dinghies to maxi sleds, picked Alan Andrews Yacht Design to design his latest Pegasus. We worked with Philippe developing Pegasus 55 to fit his requirements for a  light, fast, strong, comfortable boat that would fill the multiple roles of weekend vacation apartment, family day sailor, offshore racer and still be single-handed. All sail controls lead to the cockpit where an electric halyard winch assists in raising the main and sheeting the self tacking jib. Safety features include three watertight bulkheads, decks devoid of toe stubbing hardware and convenient handholds above and below deck. Pegasus 55 is constructed with America's Cup level laminate technology of pre-preg carbon fiber over a combination of nomex honeycomb and SuperLite balsa cores to keep performance top notch while encompassing the best in cruising amenities. Accommodations include fore and aft staterooms in addition to a large main cabin. Galley and navigation station are centrally located and include full cruising amenities.


Read Yachting Magazine's review of Pegasus 55 at Yachtingnet.com


                   SPECIFICATIONS SHEET
General Dimensions
LOA   16.75 m 55.00 ft.
LWL  14.96 m 49.10 ft.
Beam    4.36 m 14.29 ft.
Draft    3.05 m 10.00 ft.
Displacement  10,370 kg 22,870 lbs.
Ballast      4231 kg    9328 lbs.
IM 20.10 m 65.94 ft.
ISP 23.05 m 75.62 ft.
P 21.05 m 69.06 ft.
BAS    2.08 m   6.82 ft.
E   7.65 m 25.10 ft.
TPS   8.09 m 26.54 ft.
J    5.83 m 19.13 ft.
Engine  Yanmar 4JH3-CE 51 HP
Sail Drive  Yanmar SD41
Builder  Goetz Custom Sailboats
Spars  Southern Spars (Nevada)
Sails  North Sails (Ventura)
Interior styling  Paul Fuchs
Project Management  David Lake Yachting Projects

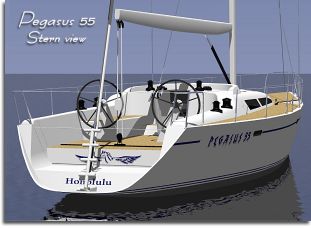

Click here for a larger view

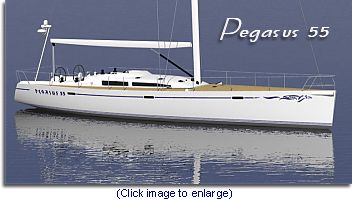

Click image to enlarge


Sail Plan
(Click to enlarge)


Deck Plan
(Click to enlarge)


Interior Plan

(Click to enlarge)
